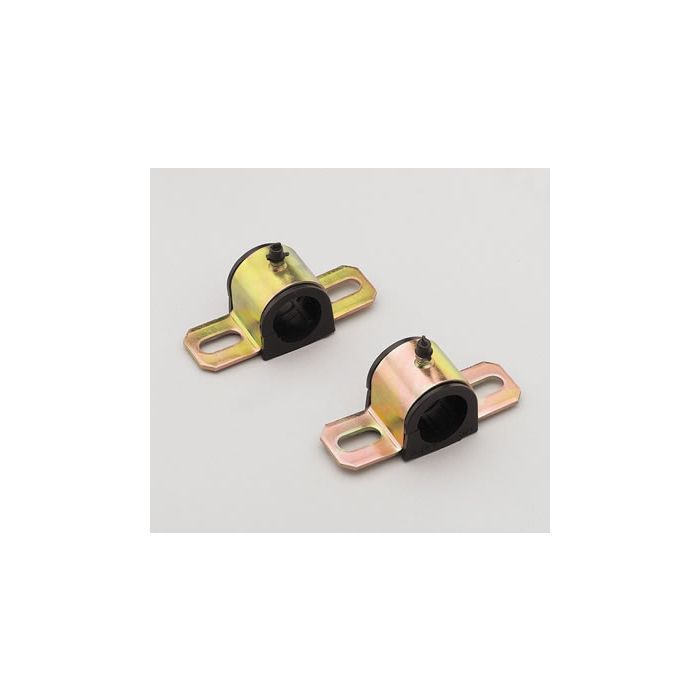

Sway Bar Greaseable Bushings, 1-1/4" (31.5mm) Energy Suspension
$65.00
In stock
SKU
.PE 9.5165G
These Energy Suspension universal sway bar bushing sets are completely greaseable, and come with a unique channel design that allows lube to migrate to all inner bushing surfaces.
This new design virtually eliminates binding, even under extreme loads from large diameter sway bars.
Mounting Bracket to Sway Bar Center line Height: 0.750 in.
Overall Sway Bar Bracket Height: 2.250 in.
Sway Bar Bracket Maximum Bolt Center to Center: 3.625 in.
Sway Bar Bracket Minimum Bolt Center to Center: 2.563 in.
Sold as a pair.
Universal for 1-1/4" (31.5mm) sway bars
Color black
Please note: If you have painted or "powder coated" your sway bar its dia will be greater than 31.5mm, use P/n 5.116G for a 32mm bush, which will fit better.
Fits:
- Camaro and Trans Am with 1-1/4" (31.5mm) front sway bars
This new design virtually eliminates binding, even under extreme loads from large diameter sway bars.
Mounting Bracket to Sway Bar Center line Height: 0.750 in.
Overall Sway Bar Bracket Height: 2.250 in.
Sway Bar Bracket Maximum Bolt Center to Center: 3.625 in.
Sway Bar Bracket Minimum Bolt Center to Center: 2.563 in.
Sold as a pair.
Universal for 1-1/4" (31.5mm) sway bars
Color black
Please note: If you have painted or "powder coated" your sway bar its dia will be greater than 31.5mm, use P/n 5.116G for a 32mm bush, which will fit better.
Fits:
- Camaro and Trans Am with 1-1/4" (31.5mm) front sway bars
.
