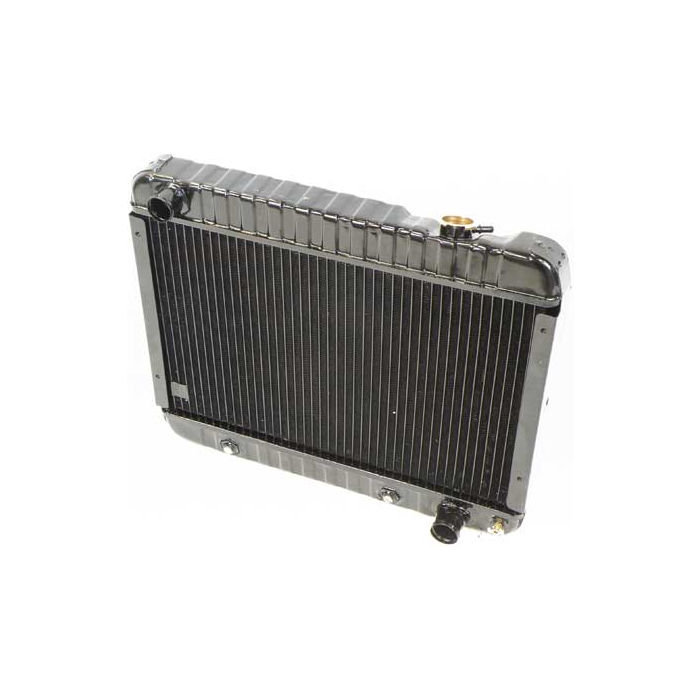

1967-69 F-Body Small Block Radiator 4 Row W'Manual Trans
$2,460.00
Out of stock
SKU
.O CRD3704S
These reproduction radiators install exactly like original! Aftermarket radiators are usually not suited for installation to maintain originality.
The original appearance is important to your restoration.
Unlike aftermarket replacements, our radiators mount correctly using original style brackets.
Beware of replacement radiators which do not have the correct brackets for mounting.
Each radiator is equipped with a new tank and core.
These are NEW radiators, not rebuilt! Comes complete with original style mounting brackets attached and installs as original to the radiator support.
The fan shroud must be replaced if you are installing a radiator for air conditioned models on a vehicle which was not originally equipped with factory air conditioning.
Use of the fan shroud helps to maintain a correct fit and keep sufficient air flow going to the engine.
Note: Fan shrouds, fan shroud brackets, radiator petcock, radiator cap and shroud mounting clips are available separately.
Due to dimensional differences, fan shrouds are not interchangeable between air conditioned models and non air conditioned models.
Fits:
- 1967-69 Camaro, with Small-Block V8 Engines w/ Manual Tranmission w/ 4-row Radiator
- 1967-69 Firebird, with Small-Block V8 Engines w/ Manual Tranmission w/ 4-row Radiator
The original appearance is important to your restoration.
Unlike aftermarket replacements, our radiators mount correctly using original style brackets.
Beware of replacement radiators which do not have the correct brackets for mounting.
Each radiator is equipped with a new tank and core.
These are NEW radiators, not rebuilt! Comes complete with original style mounting brackets attached and installs as original to the radiator support.
The fan shroud must be replaced if you are installing a radiator for air conditioned models on a vehicle which was not originally equipped with factory air conditioning.
Use of the fan shroud helps to maintain a correct fit and keep sufficient air flow going to the engine.
Note: Fan shrouds, fan shroud brackets, radiator petcock, radiator cap and shroud mounting clips are available separately.
Due to dimensional differences, fan shrouds are not interchangeable between air conditioned models and non air conditioned models.
Fits:
- 1967-69 Camaro, with Small-Block V8 Engines w/ Manual Tranmission w/ 4-row Radiator
- 1967-69 Firebird, with Small-Block V8 Engines w/ Manual Tranmission w/ 4-row Radiator
Core Dimensions:
- 17" x 23" x 2-5/8"
4-Row Core Overall dimensions:
- 31" bracket outer edge to bracket outer edge
- 28.5" bracket inner edge to bracket inner edge
- 18 3/4" radiator tank bottom to top
- 2 5/8" overall width
